2025

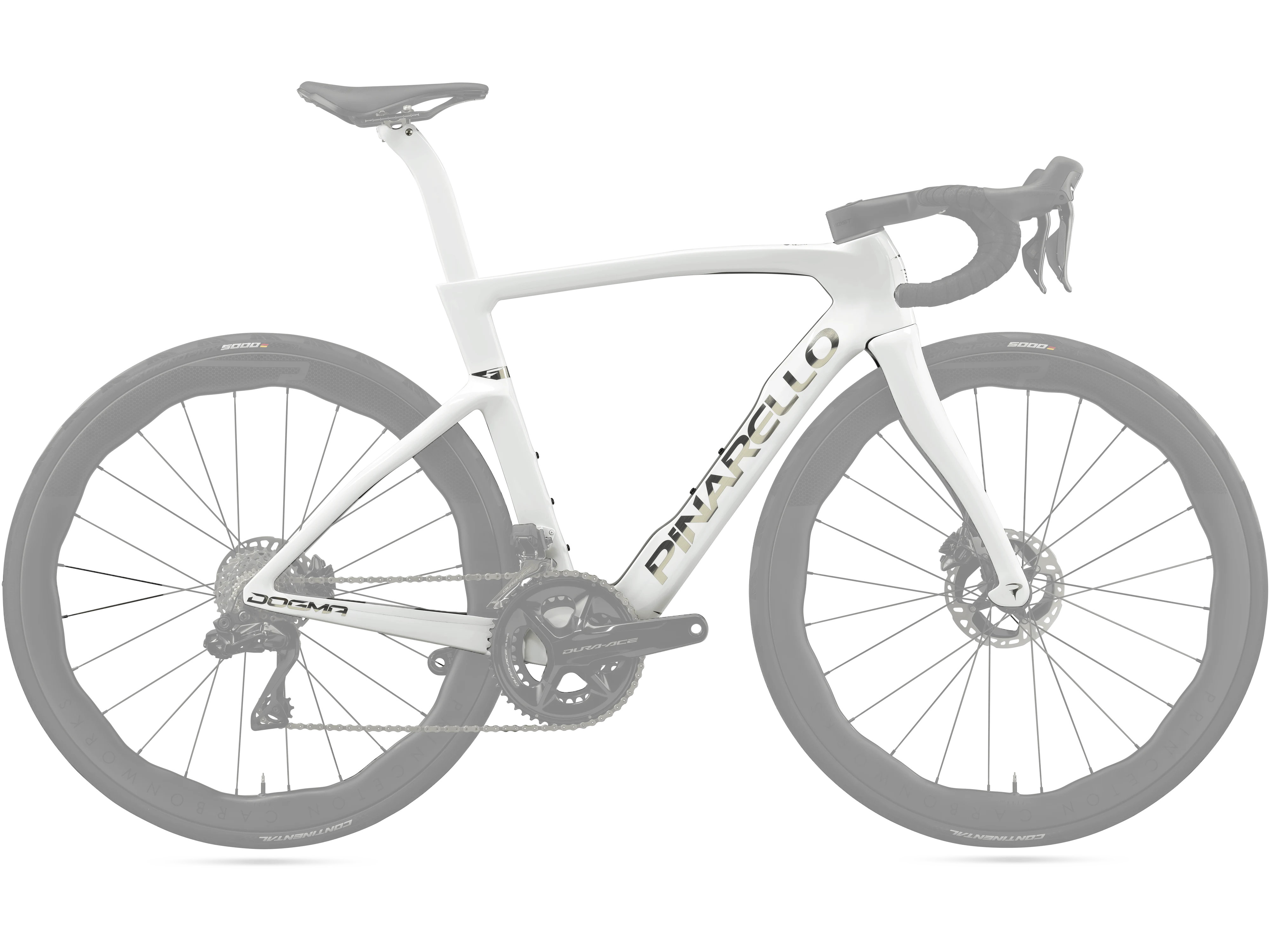

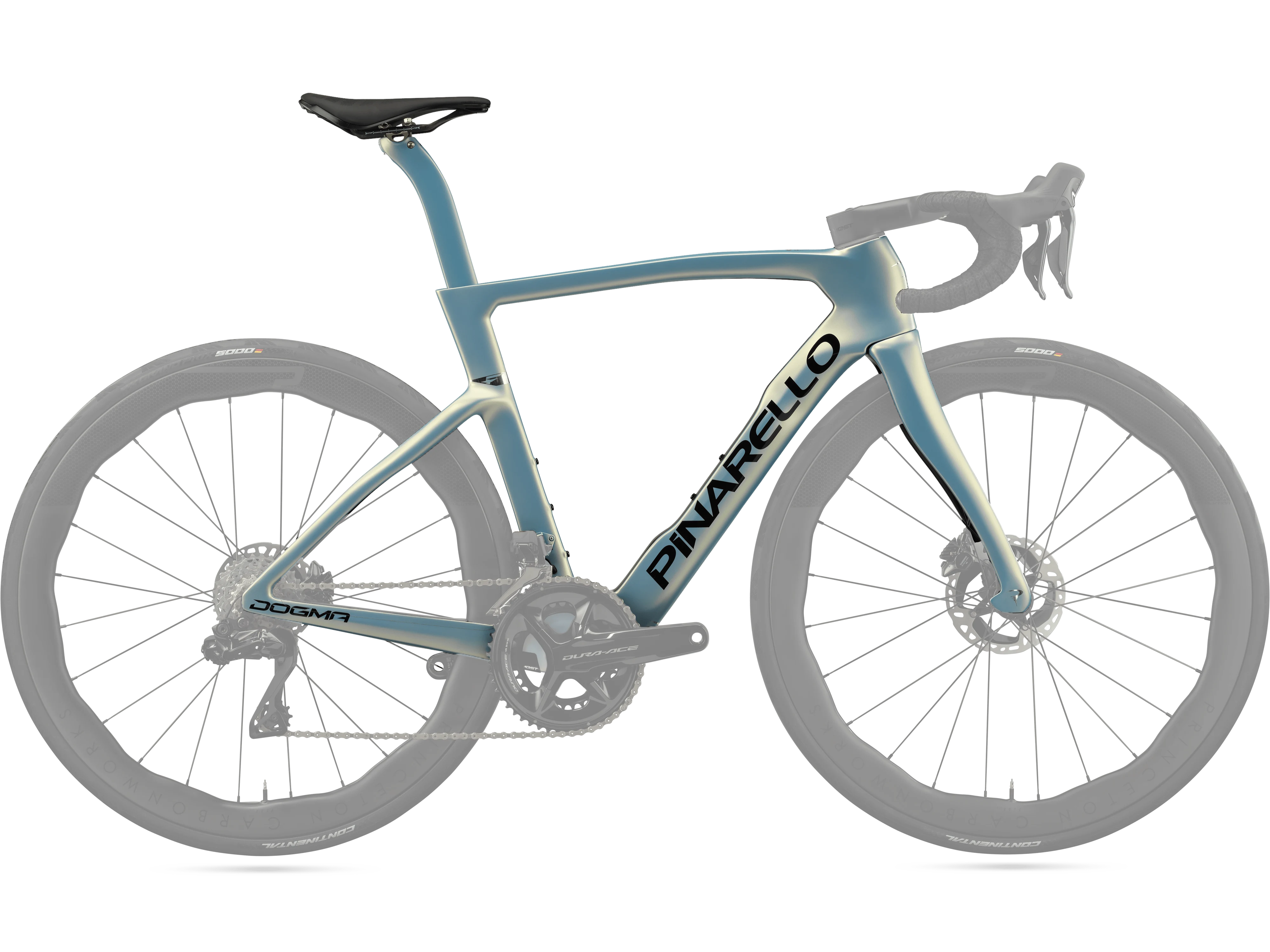

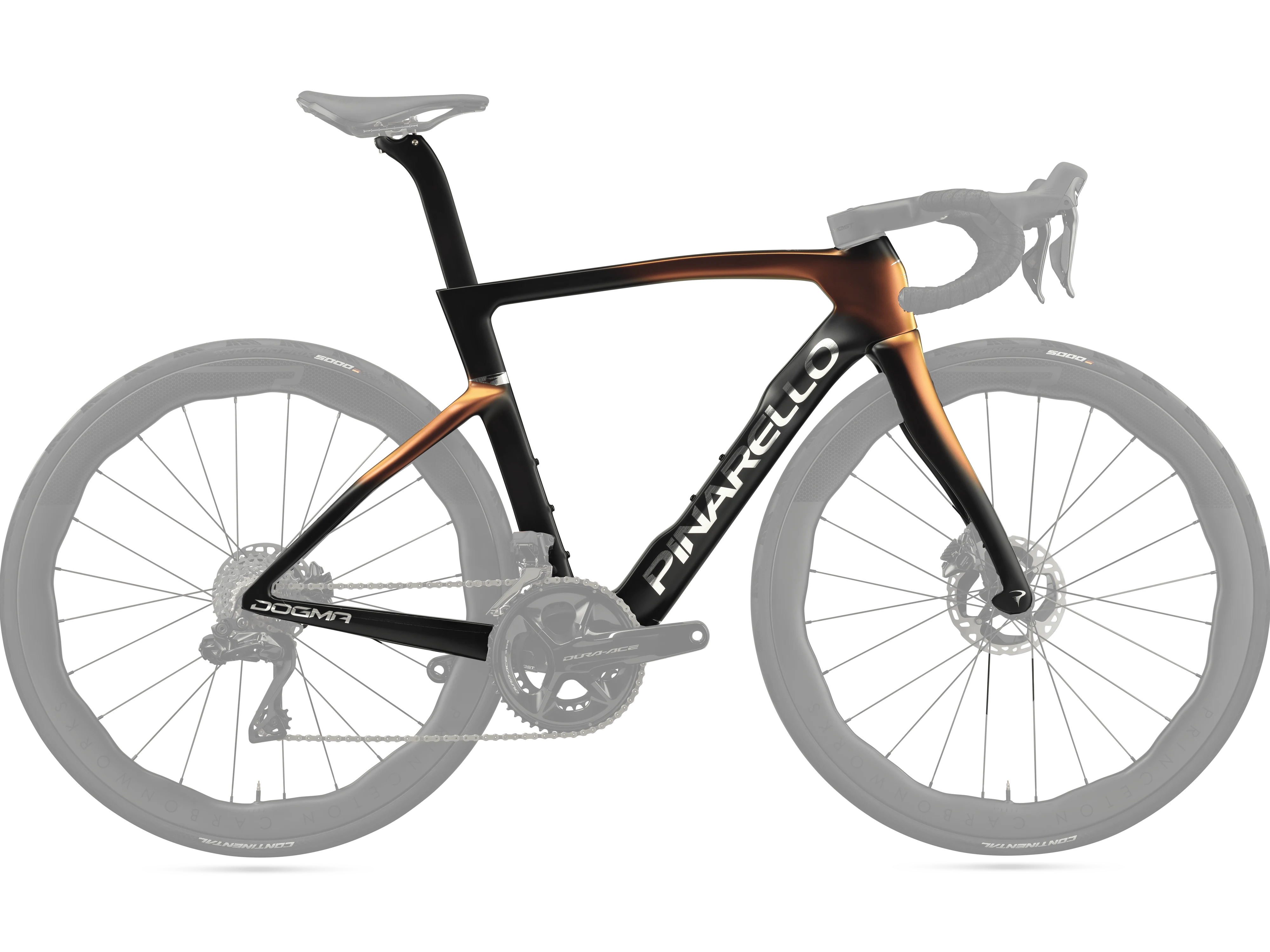

Dogma F Disc Frameset (2025)

$6,950.00
Low stock
Color
Size

Can’t find the size or color? Let us help you!

Enhance your shopping experience by adding Epic Pro Assembly for just $158 (originally $237). This service guarantees meticulous bike assembly and repackaging by our certified Epic Pros technicians. Tailored for road and gravel bikes, it also features our cutting-edge Ready to Ride box.
Available to ship in 5 – 7 business days.
30 Day Return Policy

Epic Cycles will accept returns within 30 days of the original purchase date. Note some items are non-refundable.

- Items must be in new condition, with all original packaging, and with all manuals and accessories included (items returned damaged, used, or without packaging are not eligible for return).

- If you choose "Epic Ready To Ride" shipping method, your items are not refundable. We can offer refunds only on certain situations. Contact us on orders@epic-cycles.com if you feel your situation applies for a refund.

- Items on sale are not refundable.

- Bicycles may be returned for store credit only or exchanged (re-stocking fee may apply).

- No returns on “Pre-Order” or Special Order items.

- All refunds require original receipt. For returns without an original receipt, we may, at our discretion, issue a Gift Card.

- Refunds will be issued in the same form of payment as originally used if possible. If it's not possible, we'll refund as Gift Card or Store Credit.

- Shipping and Assembly fees are non-refundable.

Read More

Available for Pickup in 4 Locations

This product is available for Pickup on these stores:

- Houston, TX
- Denver, CO
- Delray Beach, FL
- Solana Beach, CA
- West University, Houston, TX

Note that your product will be available for pickup in 72 hours.

Shipping Options

We provide shipping options for the majority of apparel and accessories, typically within 3 to 5 business days. In the case of bikes, we offer Economy, Standard, and Express Shipping, each available with or without Epic Pro Assembly.

What does our Epic Pro Assembly mean? The bike will be built, tuned up, and expertly packaged. The only items you will need to finalize installation are the handlebar, seatpost, and front wheel. Please keep in mind some tools are necessary in order to finalize this.

It's important to note that, at present, we do not offer shipping services outside the 50 U.S. states. If you have any questions about shipping, please don't hesitate to contact us.

Online Sales: (888) 366-8083

Chat with an Epic Pro (bike consultant)

Have questions about this bike?

Our Epic Experts can help you choosing the best product for you.

Just contact us on our chat.

We’ve always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.

Overview

DESIGN THE EXCEPTIONAL

We’ve always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two.

CARBON M40X

The DOGMA evolves, changing its skin to surprise you one more time. We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes. This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F.

DOWNTUBE

The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodinamic performance of the frame and the aero drag.

NEW AERO-KEEL BB

Trickle-down technology from the Hour Record, The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%.

TOP TUBE

Our unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration.

HEADSET

To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top.

THRU AXLES

New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame.

NEW ONDA FORK

The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on the descents.

INTEGRATED SEAT POST CLAMP

Our seatpost clamp has been reduced in size and fully integrated inside the frame seat tube. This new solution reduces the weight, improves the design and increases the cleanliness of the system by limiting the amount of dust and sweat that can access the clamp.

NEW TALON FAST

The new Talon Ultra Fast integrated cockpit is lighter and more aero. It is designed with a natural twisted lever position to allow our riders to find a more aero position in a safe manner.

Tech Specs

FRAME SET

FRAME: TorayCa M40X, TiCR™ Cable Routing, Italian BB.

FORK: NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer.

WEIGHT: 6.77kg. Weight in size 53, Shimano Dura Ace, Princeton Peak 4550 wheels, w/o pedals and w/o bottles.

COCKPIT

INTEGRATED HANDLEBAR: MOST Talon Ultra Fast.

BAR TAPE: most bar tape.

SADDLE: Most Lynx Ultrafast Superflow L Carbon Large 145mm.

SEATPOST: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts.

Groupset

DRIVETRAIN

CRANKSET AND CHAINRINGS: Shimano Dura Ace FC-R9200, HollowTech 2, 12s.

FRONT DERAILLEUR: Shimano Dura Ace Di2 FD-9200 12S.

REAR DERAILLEUR: Shimano Dura Ace Di2 RD-R9200 12s.

CASSETTE: Shimano Dura Ace CS-R9200 12S.

CHAIN: Shimano Dura Ace CN-HG 12S.

BOTTOM BRACKET: Shimano Dura Ace SM-BB9200BRAKES.

FRONT BRAKE DISC: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor.

REAR BRAKE DISC: Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor.

Wheelset

TYRES DISC: Continental Gran Prix 5000S TR28-622.

WHEELSET DISC: PRINCETON PEAK 4550 DB*.

AXLES DISC: NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal.

Warranty

  • https://pinarello.com/usa/en/conventional-warranty
